EZ-Boom

Automated Application Control System

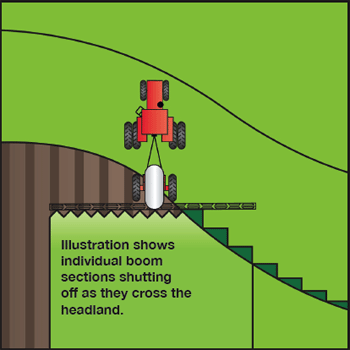

The EZ-Boom system automatically controls up to 10 individual boom sections to minimize overspray and untreated gaps on angled end rows, terraces, waterways, and other no-spray areas within a field.The system automatically calculates total applied area, so that the applicator knows exactly how much spray has been used. This provides precise applicationwith less operator fatigue than manual switching.

The EZ-Boom system also ensures accurate rate control throughout the field to minimize over- and under-application. No more skips and overlaps, or stressing over turning sections off at the right time or remembering to turn them back on. The flow rate is controlled as the system receives signals from supported flow meters and quickly adjusts the flow control valve accordingly.

The R1 and R2 switches can be set to predefined rates, and + and - switches increase or decrease the rate when needed. And, by using GPS to determine ground speed, the need for ground radar is eliminated. All these factors combine to help reduce stress on the operator, to ensure the best-possible application job, and to save money on input costs.

EZ-Boom Installation

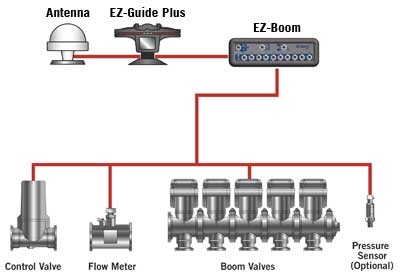

EZ-Boom can be mounted in any location in the cab by installing a single bracket that is included in the kit. EZ-Boom plugs into supported sprayer harnesses making installation simple and clean. Complete system cabling is available for all supported valves and flow meters. EZ-Boom reduces cab clutter by eliminating the need for a separate controller, is simple to install, easy to use and backed by Ag Leader's industry leading Tech Support.

EZ-Boom Key Features

• Controls most liquid applications.
• Automatic boom section on/off control.
• Controls up to 10 boom sections.
• Replaces many popular controllers on the market today.
• Raven 440/450/460/660 harness plugs directly into the EZ-Boom.
• Works in conjunction with most Raven consoles for automatic boom section control.
• Adaptor kit available for replacing Raven 4400 & 4600 consoles.
• Valves/Flow meters supported include Raven, TeeJet, Mid-Tech, Dickey John.
• Rate-1 and Rate-2 selection switch.
• +/- switch for adjusting rate.
• Manual setting for independent valve control.
• Vehicle configuration through EZ-Guide Plus LCD screen.
• Boom status indication is displayed on the screen of the EZ-Guide Plus.
• Display pressure on the screen of the EZ-Guide Plus.
• Calculates total applied area.
• Add the EZ-Steer assisted steering system for hands free steering.

return to top

EZ-Boom Physical Characteristics

What's Included:

There are four configurations for the EZ-Boom, depending on the display you will be using.

For EZ-Guide Plus

• EZ-Boom controller
• Mounting bracket
• Harness to connect EZ-Guide Plus to EZ-Boom
• EZ-Boom system Getting Started Guide and Quick Reference Card

For EZ-Guide Plus with EZ-Steer

• EZ-Boom controller
• Mounting bracket
• Harness to connect EZ-Steer to EZ-Boom
• EZ-Boom system Getting Started Guide and Quick Reference Card

For Trimble Autopilot and FieldManager display

• EZ-Boom controller
• Mounting bracket
• Harness to connect FieldManager display to EZ-Boom
• EZ-Boom system Getting Started Guide. The user manual for FieldManager display has been updated to include EZ-Boom and will ship with the FieldManager display

$1895    Call to order.



Related Information

Ag Leader EZ-Boom product sheet
Trimble EZ-Boom product sheet
EZ-Boom FAQ

EZ-Guide Plus
EZ-Steer
