Ag Leader SMS Software

Farm Management for Precision Agriculture

The goal of Ag Leader Technology's SMS software is to integrate all agricultural spatial data collection as seamlessly as possible, yet make the software easy to use. The software also manages data without GPS position data.

SMS Basic

Whether you are just getting your feet wet in precision farming or have been collecting data for years, SMS Basic has something for you.

SMS Basic is one of the most simple and easy-to-use software available today for managing, viewing, (including layering) printing and editing data. With features such as Spatial Sorting, Batch Processing, TerraServer Download, Device Setup Utility, and Split Planter Map Creation, SMS Basic combines ease-of-use with the power to get results from your precision farming data.

• Easy-to-use, point and click interface.
• Multi-layer viewing and query of data.
• Point, swath, grid, or contour maps and realtime layer transparency.
• Geo-referencing of image files.
• Creation of variable rate prescriptions for use in the PFAdvantage, PF3000, PF3000 Pro, and other application equipment.
• Import/Export of ESRI Shape, ASCII text, GeoTIF, BMP, JPEG, TIFF, JPEG 2000, Mr. Sid, PNG, WMF & other image formats.
• Customizable map printouts.
• Custom legends for crop/product and attribute combinations.
• Spatial Sorter function that uses a defined area for a field or farm and sorts GPS data that falls into these areas with the click of a button.
• Support for all modes of the Ag Leader PFadvantage, PF3000, and PF3000 Pro.
• Ability to print charts – Allows the comparison of data across multiple years, products, farms, etc graphically.
• Drawing and selection tools – You can create generic datasets using drawing tools (point, polygon, line, circle, ellipse) and also make selections using the select circle, ellipse, and pass tools.
• Query Selection Tool – This selection tool allows you to define a query filter that will then select only the data that meets your selection requirements.
• Full support for imported data – Summary information, tooltips, queries, etc is available for all imported data.
• Customizable Summaries – You can modify how and what is displayed in your summaries for the management tree, maps, and printouts.
• Boundary clipping – You can freeze a field boundary and clip grid or contour data to the boundary edges of the field.
• Direct support for John Deere® harvest files, New Holland® LOG & VYG files, Case® files, Trimble® & Mid Tech® files.
• Guidance Editor creates A-B Guidance lines that can be export to EZ-Guide Plus products.
• Crop Plan Editor generates plans that include: yield goals, products to use, rates, target dates
• Resource and Product Tracking – You can now fully define the resources and products used in your crop production cycle.
• Manual Summary Entries – Allows the entry of manual values for data, in addition to the summary information that was logged. Yield, Area, and Moisture values can be entered manually, for example.
• Batch Processing Functions – You can Add/Remove Properties, Simple Analysis, Assign Resource Tracking, and Freeze Boundaries in bulk.
• Calculated attributes – In conjunction with the Resource and Product Tracking entries you can now get calculated values for Product Used (i.e. bags of seed), Product Refills, Fuel Used, Fuel Refills, etc.
• Many other new and enhanced features.

$750 (includes 1st year maintenance fee)

Requires annual maintenance fee $120 after 1st year

Additional details, including detailed features list, computer requirements and tutorials

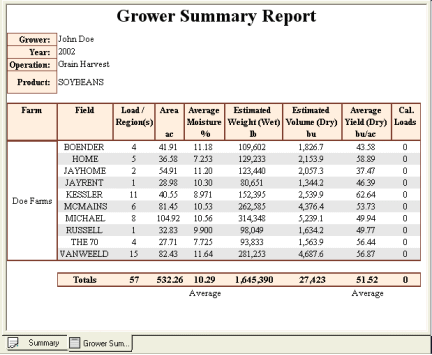

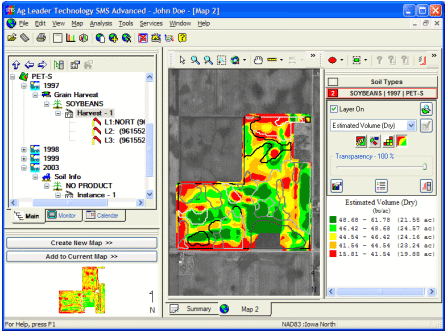

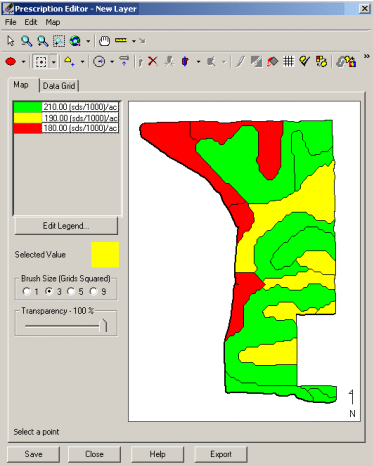

Layer Management	Grower Summary Report	Prescription Map





SMS Advanced

Ag Leader SMS Advanced couples the tremendous ease of use of SMS Basic with power that will rival or exceed any software currently on the market. Features such as expanded Batch Processing, Project Schemes, and Integrated 3D Mapping, and powerful analysis functions including Attribute Comparisons, Equation Writing, Multi-Year Averaging, NDVI DataCreation, and Profit/Loss Mapping, SMS Advanced provides the tools to get results from your data. Such Innovation has never before been seen at such an economical price.

• All the Features of SMS Basic
• Calendar View for exploring your data when you actually collected it.
• Batch Functions such as map printing, exporting and importing data, reprocessing data, creation of split planter data, analysis functions
• Ability to Automatically Download Satellite images based on fields, city & state, or latitude & longitude
• Integrated 3D Terrain View and 3D Data Plotting
• Design and edit your own reports, charts, analysis results and map printouts
• Project Storage scheme for handling multiple clients easier
• Support for installing on and working across a Computer Network
• Comparison Analysis function to compare different types of data such as yield and moisture by soil type for all your fields & across Multiple Projects
• Equation Writer analysis function that lets you create data that provides the answers you want, the way you want them.
• Several additional analysis functions such as Multi-year Averaging and Normalization, generation of NDVI data from NIR Images
• Detailed Financial Tracking, mapping, and reporting to show you where you’re making or losing money
• Seamless compatibility with SMS Basic

$1,995

Requires annual maintenance fee $450
Upgrade to SMS Advanced from current SMS Basic available. Call to order

Additional details, including detailed features list, computer requirements and tutorials

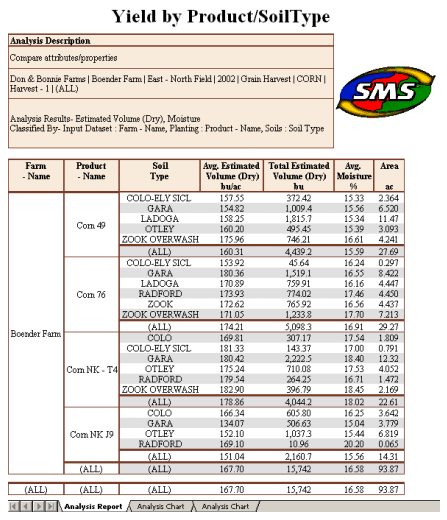

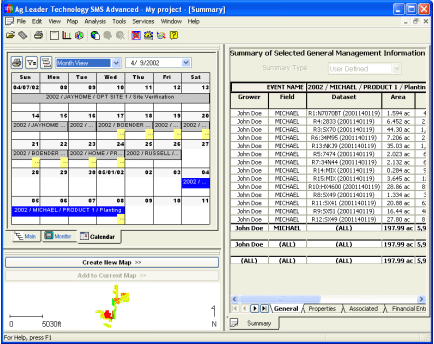

Calendar View	Yield by Product/Soil Type
